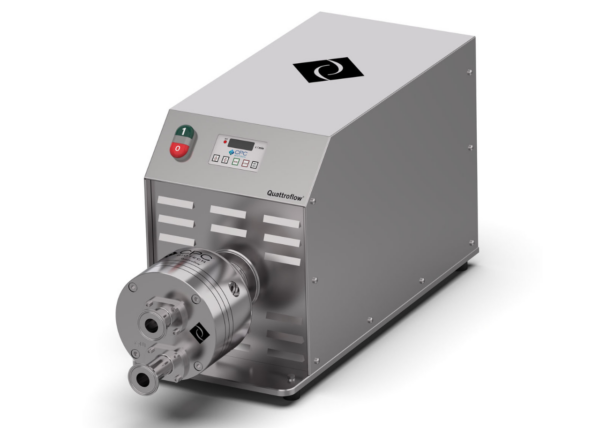

Quattroflow 2500HT Quaternary
Diaphragm Pump
“All-in-One” Technology
Our Quattroflow pumps feature innovative “All-in-One” technology, with an integration of pump chamber, pump drive, motor, and control box for a small and portable format.
Minimal Particle Generation
The QF2500HT has no mechanical shafts, seals, or wetted rotating parts, helping to minimize particle generation and maintain total product containment without abrasion.
Overview
With a maximum flow rate of up to 42 lpm, PSG Biotech's Quattroflow 2500HT Single-Use and Multi-Use Pumps offer a new pump chamber design that allows for linear flow performance and high flow stability at low flow rates. This quaternary four-piston diaphragm pump was created for critical applications in the biopharma industry and the design allows for risk-free dry-running, low pulsation, self-priming, and minimal particle generation.
The operation of PSG Biotech's Quattroflow pumps allows them to gently, safely, and securely convey aqueous solutions and biological products that are sensitive to shear force. The four-piston design does not feature a mechanical shaft seal or wetted rotating parts, ensuring total product containment without abrasion.
Flow rates:0.83 - 42 lpm
Turndown ratio: 125:1
Single-use configuration: Single-use pump chambers can be supplied gamma irradiated or autoclaved
Multi-use configuration: Stainless steel pump chambers compatible with autoclave, clean-in-place (CIP), and sterilize-in-place (SIP) protocols
Features & Benefits
- Flow rate from 0.83 - 42 lpm
- New pump chamber with self-draining design for dry-running
- “All-in-One” technology – integration of pump chamber, pump drive, motor, and integrated controller
- Up to 125:1 turn-down ratio
- Linear flow performance
- High flow stability even at low flow rates
- Low pulsation
- Minimal particle generation
- Clean-In-Place (CIP), Steam-In-Place (SIP), and Autoclavable
Documents
Applications
- Filtration technology: To recirculate feed/retentate (e.g. membrane cassettes, hollow fibre, spiral wound, ceramic elements)
- Chromatography: Packing of chromatography columns
- Feed pump for centrifuges or separators, filling machines, or filter cartridges or plate and frame depth filters
- As well as many other applications
Technical Specs
| Flow Rate Maximum: | Eccentric Shaft 5° | 2,500 lph (41 lpm) |
| Flow Rate Minimum: | Eccentric Shaft 5° | 50 lph (0.8 lpm) |
| Pressure: | Temperature of Fluid < 40° C (104° F) MU/SU | 6/4 bar (87/58 psi) |
| Temperature of Fluid < 40° C (104° F) | 4 bar (58 psi) | |
| Maximum Temperature: | Fluid MU/SU | 80/60°C (176/140°F) |
| CIP MU only | 90°C (194°F) | |
| Autoclave | 130°C (260°F) | |
| Pump Speed Range: | rpm | 30-1,750 |
| Suction Lift Dry at Maximum Speed: | Eccentric Shaft 5° | 4 - 4.5 m (13.1-14.7 ft) |
| Volume Specifications: | Approximated Volume per Revolution at Free Output | 27 ml |
| Approximated Filling Volume Without Connectors | 210 ml | |
| Connection Specification (Standard): | Connectors | 1" TC |
| Position of Connectors | Front |
