MasterMover MT5/400+ SS
Electric Tug
Eliminate Manual Handling
Streamline the transportation of loads up to 8,800 lbs. to a single-operator task.
Maximize Suite Uptime
Electric tuggers offer the flexibility to rearrange cleanroom suites and process trains due to their inherent mobility.
Compact Footprint
Our electric tuggers allow for precise positioning of loads, maximizing the space being used.
Watch the Video
Learn how, with our MasterMover electric tugs, a press of a button is all that is needed to engage the hydraulics, creating an unbreakable connection to the load in the video above.
Effective, Safe and Easy-to-use
Our MasterMover MT5/400+ electric tug improves safety and efficiency in your cleanroom environment, allowing heavy loads to be moved by a single operator.
Overview
The MasterTug MT5/400+ SS is an electric tug completed in a 316 grade stainless steel chassis, with IP55 protection, and stainless steel drive wheel. The compact size and easy-to-use functions make this electric tug perfect for moving heavy loads up to 8,800 lbs in areas with restricted space. Maximize usable square feet in hallways and production spaces by reducing turn radius demands.
The excellent performance in all working environments is due to the MasterTugs detailed design and ability to gain traction from the coupling system. It’s extremely effective, safe and easy-to-use making it perfect for any pharmaceutical, biotech, or life-science company wanting to improve safety and efficiency using electric tugs.
Features & Benefits
- Hydraulic coupling point
- Easy to use- no operator license required
- Moving equipment from underutilized sites to potential full utilization sites
- Controlled movement of pharma & biotech stainless-steel & single-use equipment
- Operate in a cleanroom environment & confined laboratory spaces
- Battery monitoring system
- Automatic braking and anti-crush button
- FEA tested steel chassis
- 2 drive motors
- Leveraged weight transfer
Documents
Applications
Our customers are using our electric tugs to move…
- Chromatography columns
- Bioprocess containers
- Agitators & Reactors
- Tanks & Vessels
- Refrigerated Cabinets
- Skids and Super Skids
- Nitrogen Tanks
- Drums and Barrels
- As well as many other applications
Technical Specs
| Product code | MT5/400+ SS IP44 | |
| Recommended load weight - Castors | 4000 kg | |
| Machine weight including battery | 281 kg | |
| Parking brake | Electromagnetic | |
| Drive wheel type | Polyurethane | |
| Drive motor power | 1 kW | |
| Controller type | AC | |
| Variable machine speed | 0.1 km/h - 5 km/h | |
| Battery Options | Battery pack - sealed - 102Ah 24V - interchangeable | |
| Charging Options | Charger - external - 15A 24V - 110V-240V Charger - internal - 12.5A 24V - 110V-240V |
|
| Additional Equipment | Option - flashing safety light and motion bleeper Option - two speed selector switch |
|
| Male Coupling Options | Coupling - male - height adjustable combi Coupling - male - height adjustable box |
|
| Female Coupling Options | Coupling - female - combi Coupling - female - box |
|
| Ingress Protection (IP) | IP44 | |
| Corrosion resistant stainless steel metalwork | 316 Grade | |
| Mechanically polished stainless steel | 240-grit abrasive to 0.6µ satin finish | |
| Stainless steel and polyurethane castors | 304 Grade, non-marking | |
| Stainless steel Ram | 1000kg, 316 Grade, welds dressed flush | |
| Stainless steel nuts and bolts | 316 Grade (A4) | |
| Stainless steel gas spring | 316 Grade | |
| Sealed control cover | With IP rated glands for retractable cables |
Product Comparison
MT5/400+ SS
Electric Tug
- Up to 8,800 lbs.
- 2 drive motors
- IP55 Rated
- Hydraulic coupling point
- Automatic braking
- Anti-crush button
SM100+ SS
Electric Tug
- Up to 2,600 lbs.
- ISO Standard 32
- IP44 Rated
- Hydraulic coupling point
- Automatic braking
- Anti-crush button
MT20/1200+ SS
Electric Tug
- Up to 26,000 lbs.
- Minimum IP44 protection
- Rechargable, replaceable batteries
- Hydraulic coupling point
- Automatic braking
- Anti-crush button
Related Products

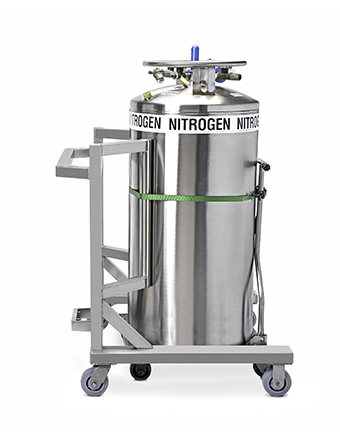

MaxxMover
